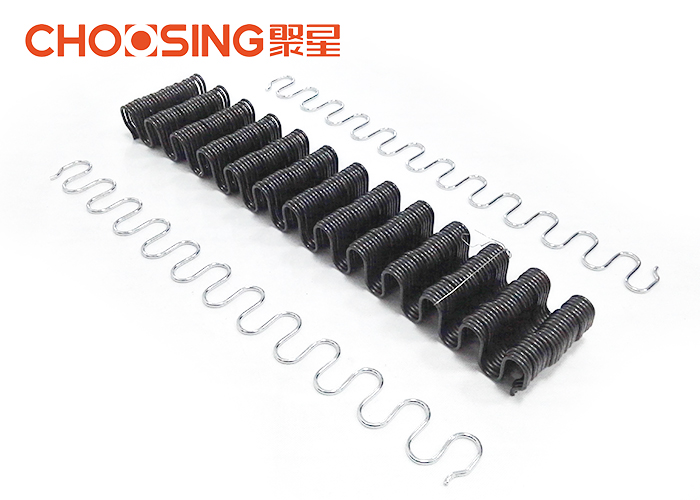

Durable Zinc Plating 3.6mm - 3.8mm No Sag Sofa Springs , Black Color Upholstery Sinuous Springs​

Application

Our range of 9 gauge ZigZag Springs (sometimes called Serpentine Springs, Upholstery Springs, Sofa Springs or Furniture Springs) are ideal for re-upholstery projects or replacing broken springs on chairs and sofas.

Product Descriiption

Zig-Zag Springs are sometimes called Serpentine or No-Sag Springs. These are springs formed from tempered wire, which is then formed into evenly spaced curves or "loops" for a fully supportive seating system. Pitch is measured as the distance between the centre points of one 'U'. Zig Zag Springs should be used with CONNECTING LINKS or similar. Zig Zag Springs are fastened with single metal 'Z' CLIPS or continous plastic CLIP STRIP and can come in ARC or FLAT options depending on the height of 'crown' required and the overall desired appearance.

High tensile strength wire spring, perfectly tempered. Higher gauge springs have thinner wire. Can be cut with bolt cutters. Ready to use. Maximum resiliency is obtained when a convex spring arc height is between 2 and 2 1/4 inches. This is the 'rise'of the spring over the frame mounting point. If you wish to add height to an exisiting spring, use a hinge link at the back of the frame. Spring ends should be cut so that both end face the same direction. When measuring to cut, if the desired length means the ends would face opposite, go to the next longer, not shorter, bend. Sinuous springs, also known as sagless or zig-zag, are the most common low profile springs. Although the shape may lead you to think otherwise, they do depend on compression for the spring effect. A solid and sturdy frame is required to bear the stresses, from the front to back rail and top to bottom rail pull of these springs (occasionally reinforcing is required).

Product Details

Features Of Products

1. Fine finish: heat treatment with transparent painting coating or zinc plated.

2. Special types can be available as per customers' drawing or samples.

3. Rolling, round, flat, super loop or functional zig zag are all available.

4. Good elasticity: the sinuous spring is made of high carbon steel wire.

5. Quality guarantee: our springs pass the fatigue test exceeds 20,000 time is not out of shape.

Why Choose Us?

1. Quality guarantee

2. Good price and best service

3. One-stop solution

4. 24 hours online and fast reply

5. Fast delivery time

.

Product Photo

After past few years developments,our factory building area has reached 10,000 square meter,we have more than 5 technicians with many years' experience in this field.Using imported equipments in processing,the annual output reaches 8,000 tons,products quality in a leading position of the industry.'Choosing' brand mainly includes:sofa zigzag spring,coil spring,cushion pocket spring and relevant accessories of software furniture.So far,Ju Xing has had strong ability of customized,supply customers with a variety of customized sofa spring and service,to meet different needs.

Ju Xing believes the innovation is the most important source of improvement and the basic of competitive force.We will keep investing on new products to ensure the leading position in the market,create greater value for customers to achieve a win-win situation.
